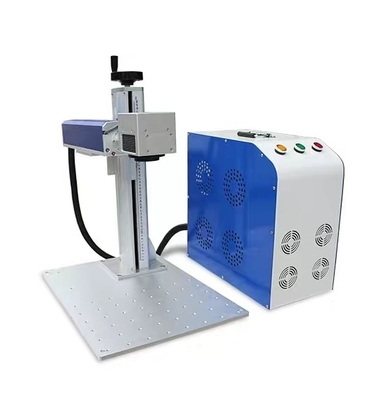

Laser marking cost effective high speed 3d laser marking machine /50w fiber laser marking machine for sale

1 Set
MOQ
Laser marking cost effective high speed 3d laser marking machine /50w fiber laser marking machine for sale
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Application: Laser Marking
Working Accuracy: 0.001mm
Graphic Format Supported: AI, BMP, Dwg, DXF, PLT, Dst
Laser Type: Fiber Laser
Condition: New
CNC or Not: Yes
Cooling Mode: Air Cooling
Control Software: jcz, EZ CAD
Laser Source Brand: Raycus
Weight (KG): 50 KG
Key Selling Points: Easy to Operate
Warranty: 3 years
Applicable Industries: Hotels, Garment Shops, Manufacturing Plant, Food & Beverage Factory, Home Use, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Marking Area: 110mm*110mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 3 years
Core Components: Laser source, laser source
Keywords: 50w fiber laser marking machine
Laser Power: 20W /30w/ 50w(Optional)
Laser wavelength: 10640nm
Marking Speed: 7000mm/s
Marking Depth: 0.01-0.5mm
Working area: 110x110/175x175(Customized)
Power supply: 220v
Lifespan of laser device: 3 years
Laser head: galvo lens
Certificering: ce
After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Canada, Turkey, United Kingdom, United States, Italy, Brazil, Peru, Mexico, Spain, Australia, South Korea
Showroom Location: United States, France, South Korea
Marketing Type: New Product 2020
Basis informatie
Certificering: ce
Betalen & Verzenden Algemene voorwaarden
Packaging Details: 1.Standard wooden cases with sponge filled inside for packing protection 2. The Wooden case is fumigation free which is suitable by sea & by air. 3. Customized Packing as per Customer's requirement.
Productomschrijving
Before Buy
Machine introduce: 20W/30W/50W laser marking machines fiber portable cnc metal laser marker dog tag laser marking
1. What kind of material our machine can mark ?
Our machine is very good at marking on metal, such as silver, alloy, aluminum, stainless steel, copper etc, and some non-metal materials, such as PVC,PC, black acrylic etc
2. Which industry will be widely used for this machine ?
Our laser marker is widely applying for electronic, jewelry, automobiles, communication products, plastic buttons, IC etc.

Laser marking machine function:
1) Marking logo, text, time, serial and part number, QR code, bar code, 2D code, bitmap, pictures and images.
2) Fiber laser marking all kinds of metal and some kinds of nonmetal.
3) Fiber laser marking machine can deep engraving and cutting gold silver brass jewelry for names, rings, bracelet,tags.
4) Mopa fiber laser can mark colors on ss and titanium. Mark anodized aluminum and plastic.
5) The 2.5D and 3D fiber laser marking machine can relief engraving 3D mould metal and curve surface on both metal plastic.
Product Description
Specification
1.The electro-optical conversion efficiency is high, the whole machine consumes less than 500W, which is 1/10 of the lamp-pumped solid-state laser marking machine, which greatly saves energy consumption.

2.The focal axis position is optimized for deep engraving, suitable for embossment, 3D applications. Deep Marking with high accuracy.
3. No need to carry out any maintenance, fiber laser use life is about 100000 hours, small size, suitable for work in harsh
environments.
4. The whole system adopted the optimization designing of electromagnetic compatibility, with high. signal-to-noise ratio and strong anti-interference ability.
5. 3D laser marking machine Software control system can automatically calculate the arc radian, automatically adjust the focal length.
Laser power
(20W,30W,50W optional) RAYCUS/MAX LASER DEVICE
Laser wavelength
1064nm
Laser type
Fiber Laser
Repeat Frequency
20KHz-80KHz
Repeat Positioning Accuracy
0.005mm
Min linear width
0.01mm
Marking Depth
0.01-0.5mm
Standard Marking Area
110×110mm
Optional Marking Area
70×70mm--300×300mm
Rated Power Consumption
less 500W
Operating Voltage
220V/50Hz/15A
Graphic formate supported
PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO. DXF,etc
Working temperature
5-35 centigrade
Cooling
Air Cooling
Marking Sample
Packing & Delivery
Standard 3 layer export package
1). Outside plywood package with metal belt
2). Middle size foam
3). Inner side waterproof film
Company Profile
Shandong Manbaykon export &import Co.,Ltd is a manufacturer specialized in laser marking machines, laser engraving machines,laser cutting machines At present, we have a young and experienced team,first-class technical center and a professional production base.We have established long and stable relationships with many famous universities and science and technology institutes in Shanghai and Beijing. Technology and innovation is always our focus.We have always been striving to promote the quality and technological innovation of our products. Our products always give
wonderful experience to the customers and we hope to cooperate with the customers from all over the world.
Welcome to visit us!
Why Choose Us
Professional after sales service team.
1.we offer 24 hours online service
2. all engineer can speak english
FAQ
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and English instruction book send to you with machine.If there is still have any question, we will provide free professional guide for you until you could use machine well.
Q: Can I get a machine according to my own requirements?
A: Sure.We can change the type and color and appearance of the machine according to your preferences and requirements, so that we can satisfy you.
Q: If the machine has problem in my place, how could I do?
A: The machine has three years guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. We could send free parts to you in warranty period if machines have any problem under "normal use".
Q: Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory.
